Pre Built YAP (Yet Another Poco)

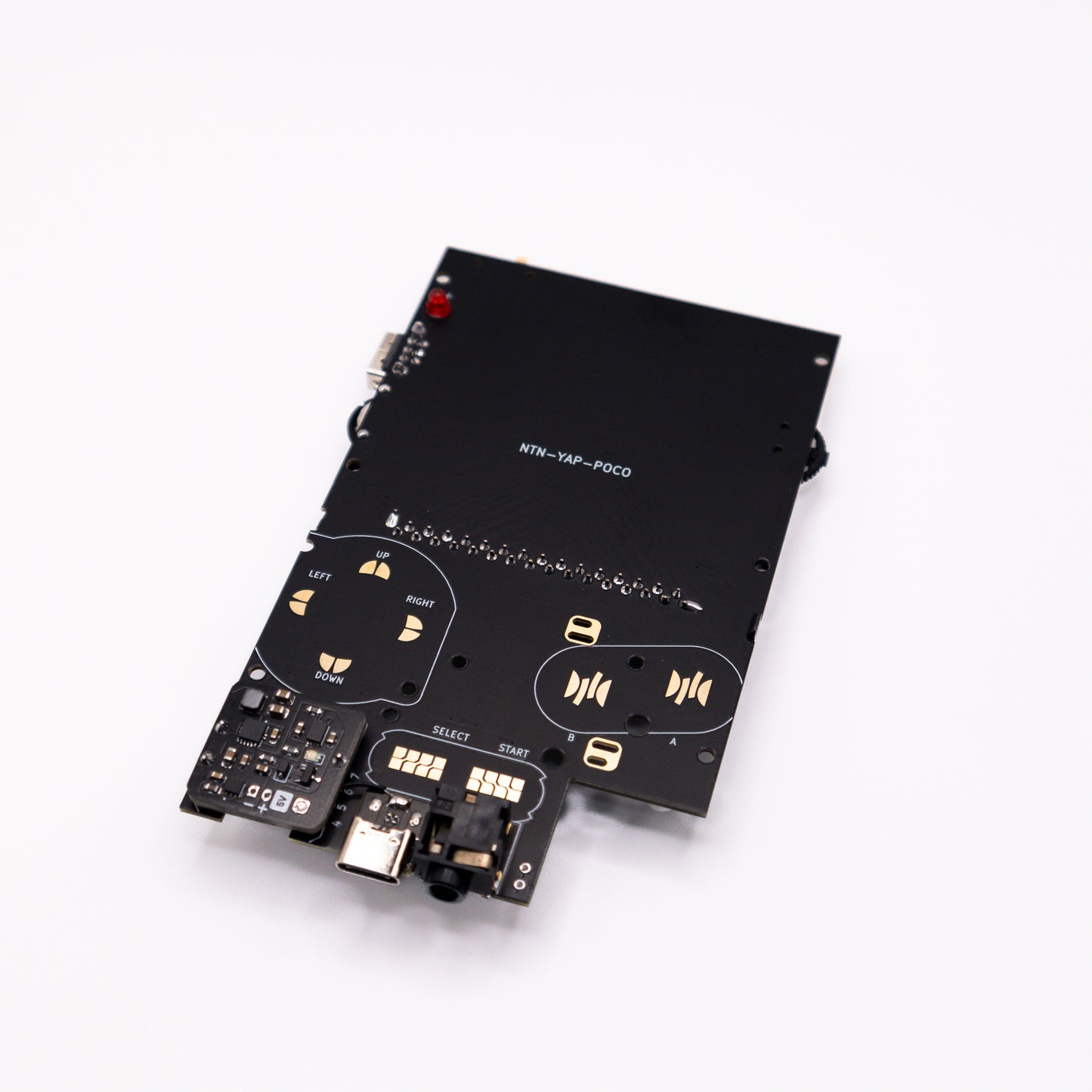

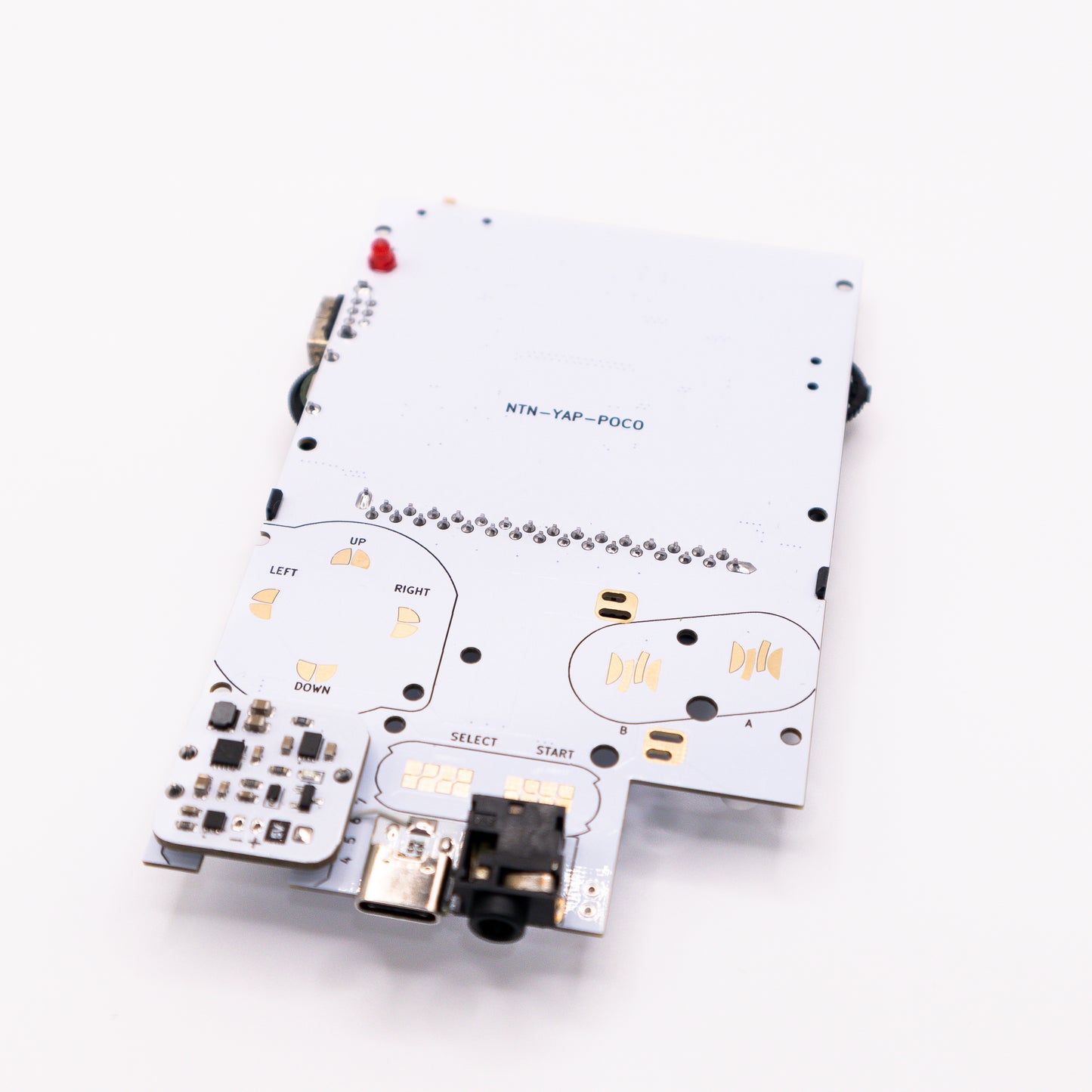

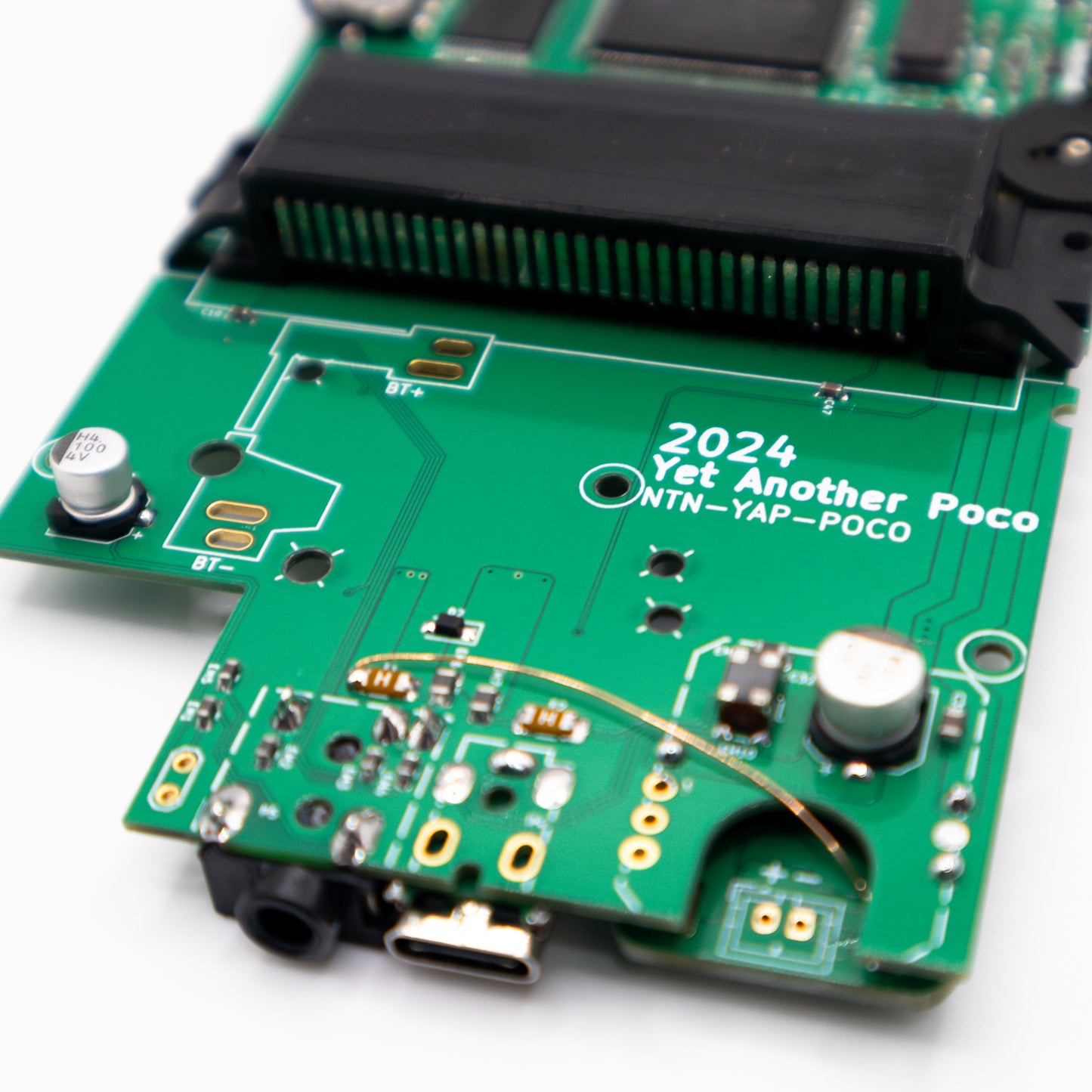

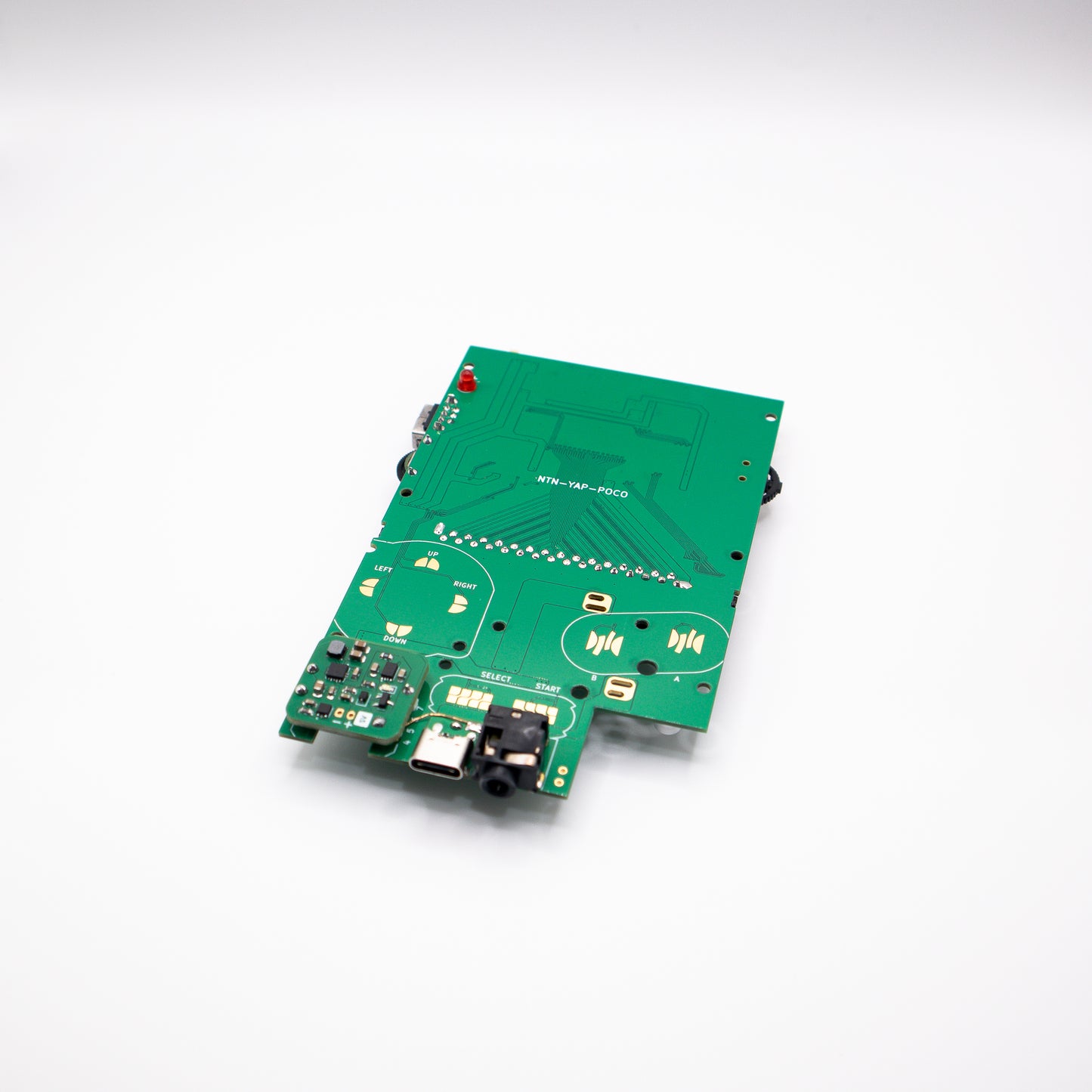

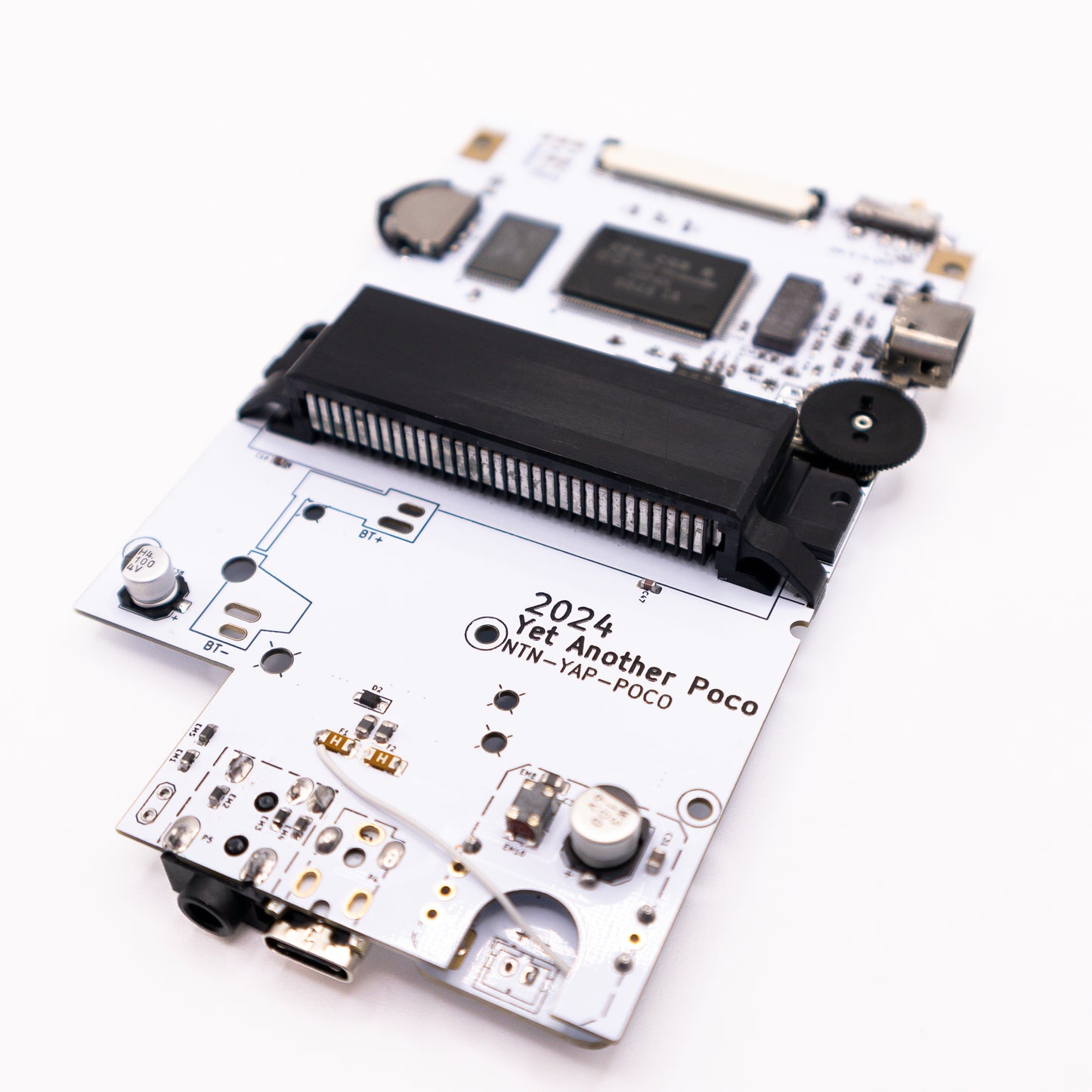

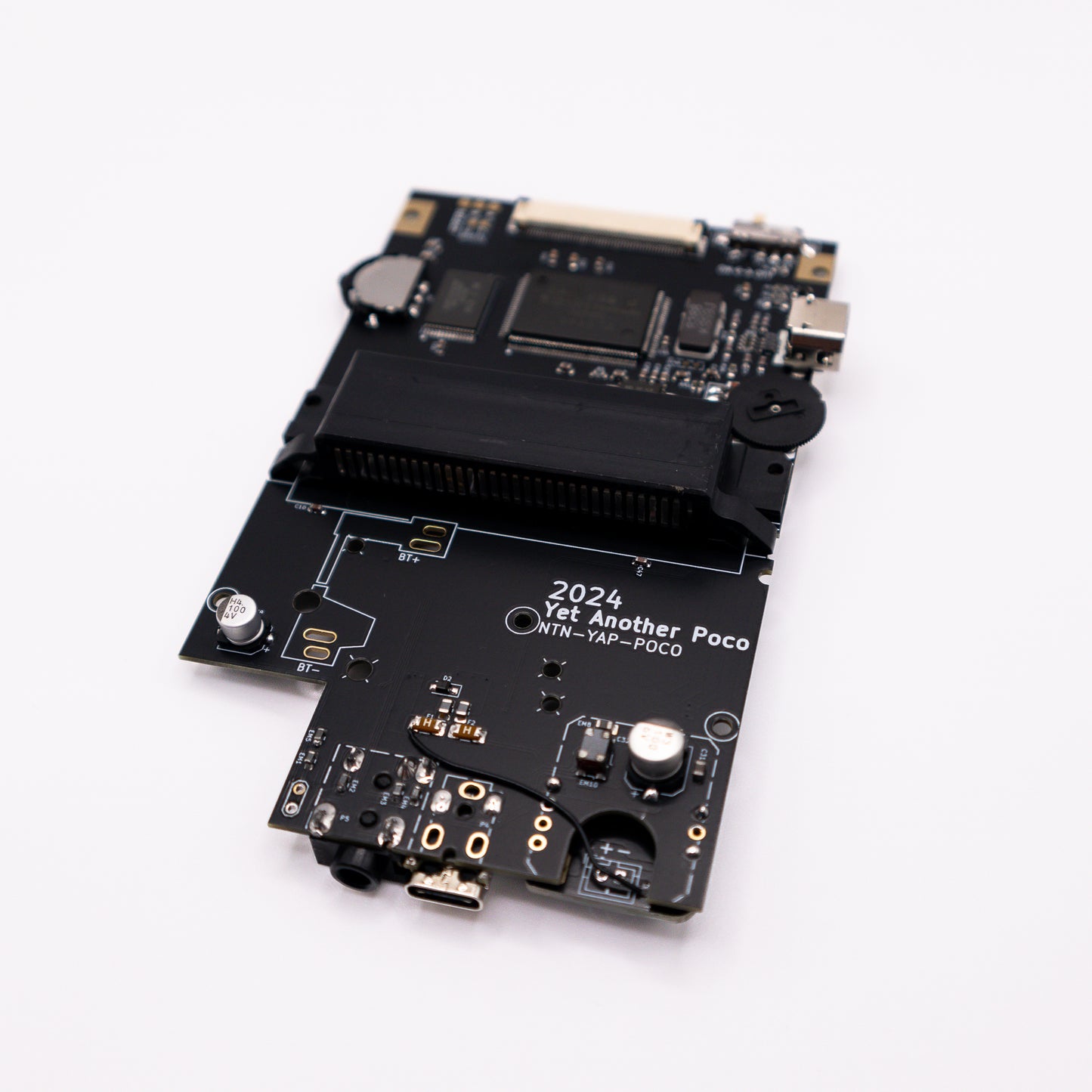

A pre built YAP (Yet Another Pocket Color) board.

This board fits in a Game Boy POCKET shell

The board is hand soldered and tested by me, Natalie the Nerd.  The pre built YAP LiPo ready with a Safer Charge DC board pre installed for longer play time with a modern power circuit.

For this board you will need to supply your own shell, screen, buttons and speaker. I recommend using a Q5 OSD GBC screen.

Recommended screen OSD GBC

For shells, I personally recommend Funny Playing since you wont need to trim the shell for the screen.

This board uses all the parts of an original Game Boy Color minus the IR and original screen circuit. Most parts are in the same spot, however if you are having trouble you can check the interactive BOM

The thumbwheel circuit can be connected to an OSD screen to control brightness. The two touch pad wires and be conneced to the pads labelled ↑↓ on the back top left side of the board. The select, A and B pads are easy connection pads for the screen also.
