Light Colour - LoCo

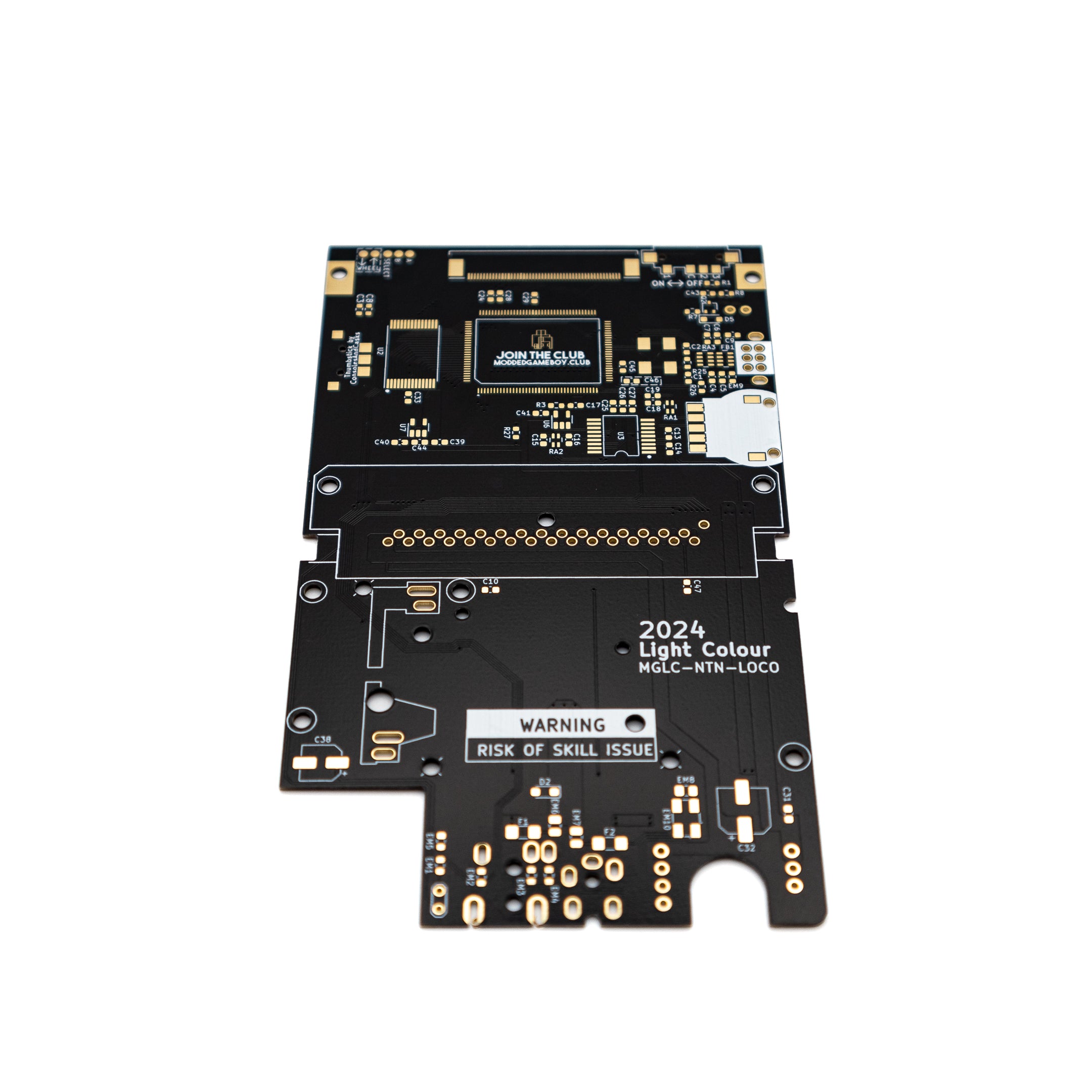

This is a 1:1 Light Color board. It uses all the original parts from a Game Boy Color board. Note: NOT compatible with CPU E boards.

This board fits in a Game Boy LIGHT shell

For reference, here is the interactive BOM for:

• LoCo
• Original GBC

Recommended screen OSD GBC

This board uses all the parts of an original Game Boy Color minus the IR and original screen circuit. Most parts are in the same spot, however if you are having trouble you can check the interactive BOM

The thumbwheel circuit can be connected to an OSD screen to control brightness. The two touch pad wires and be conneced to the pads labelled ↑↓ on the back top left side of the board. The select, A and B pads are easy connection pads for the screen also.
