ARC Pocket Install Guide

Guide on how to install Natalie the Nerd ARC Pocket RGB LED board

1. Preparing the Pocket

First, you need to solder to the vias. This can be difficult. If you are having trouble, I have made a youtube video that might help.

how to solder to vias

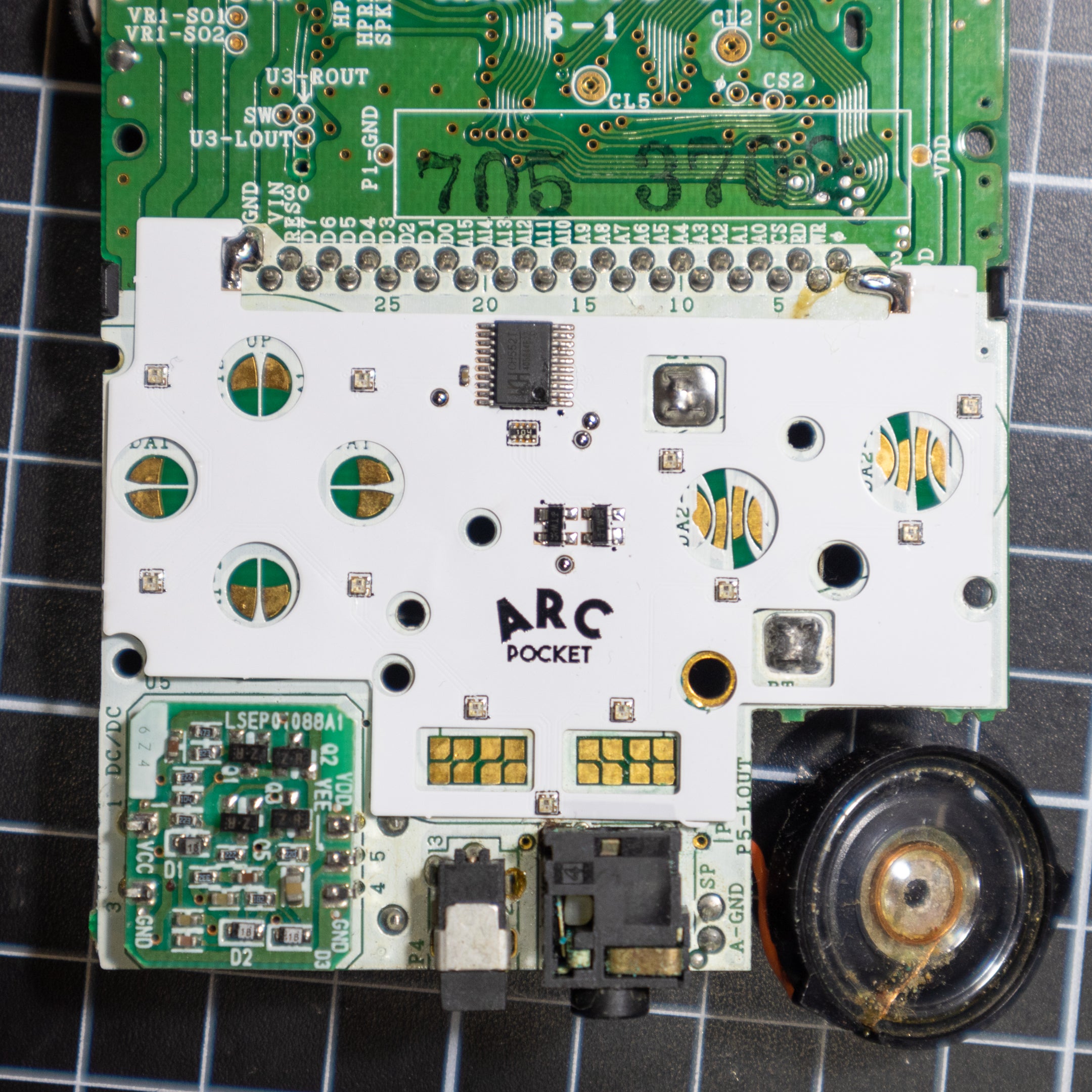

2. Align and solder

3. Controlling the board

Hold down [START] [A] and [B] until the leds blink

  • [START] changes the colour of start and select
  • [UP] changes the colour of the dpad
  • [A] changes the colour of A and B
  • [B] changes the brightness

After 3 seconds of no activity, the settings will save.
