Instructions for the board with the green arc core
Instructions for the board with one chip in the middle
Instructions for the board with tactile buttons only

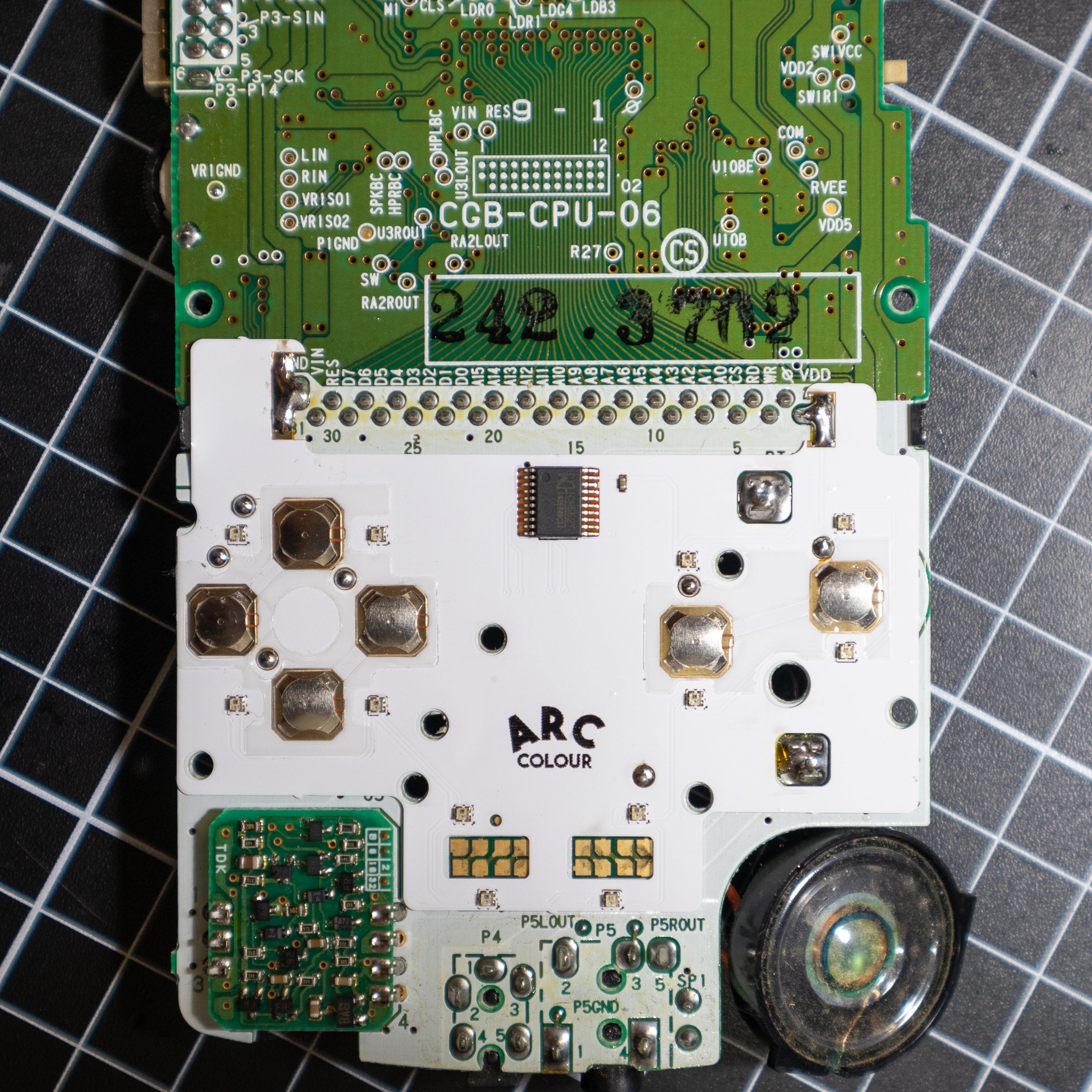

Align the ARC GBC board to the GBC motherboard. Solder to the circled pads
Hold down [START] [A] and [B] until the leds blink
After 3 seconds of no activity, the settings will save.
- Hold down start and tap a to switch colours
- Hold down start and tap up to change brightness
- Hold down up and a together to save the colour and brightness
The same as above, just solder the extra pin out points. Tactile domes can be removed by just peeling them off
